Name: Quartéa intelligent
Brand: Intuis
SKU: mc_quartea_intelligent_mi
Price: 261.6 EUR
Availability: InStock

Quartéa intelligent

Orientation

Powers

Color




Advantages

A curved design that optimizes the diffusion of radiation. A smooth satin white finish (ral 9033), dirtrepellent and soft to the touch.
The most complete range of dimensional choices in this category. From 300W to 2000W available in vertical, horizontal formats and above all radiant plinths only 28.3 cm high.
QUARTEA intelligent is NF performance 3 star eye** certified. This Certification guarantees the highest level of performance in terms of comfort and advanced energy saving functions, recommended within the framework of the DPE.
Easy management of energy savings in local mode or from a smartphone in connected mode, thanks to the intuis connect with Netatmo application.*

*Except for skirting model: CE

*the intuis connect with Netatmo module is optional **Horizontal and vertical models, the plinths are CE but meet the specifications of the BAR TH 158 sheet

Features

Its design in 3 different sizes adapts perfectly to all the constraints of various interiors.
Its intuis connect intelligence offers the ability to take advantage of every possible energy saving with consummate ease... reinforced by the smart operation with a
connection module.
Choose a radiator made in France, certified by means of the OFG label, which guarantees that the majority of production operations take place in France.

Technical Specifications

Heating power (W)

1000

Available colors

White

Height (mm)

440

Width (mm)

637

Depth

113

Net weight (kg)

5.3

Packed height (mm)

493

Packed width (mm)

700

Packed depth

141

Packed weight (kg)

IP rating

IP24

Shock resistance index IK

IK08

Protection class

Warranty (in months)

Energy-saving certificate

BAR-TH-158

Qualities and Environmental Characteristics

Description

Intuise the control of radiation.

The QUARTEA ranges are equipped with an exclusive radiant emitter developed and manufactured in-house. These are one-piece aluminum alloy transmitters completed with differential treatment to concentrate the radiation towards the front of the device.

A unique choice of dimensions in its category, to occupy all types of available spaces

3 formats to fit into all possible spaces.

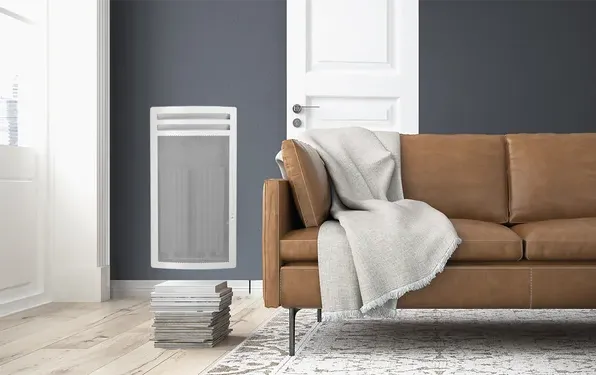

3 powers in Vertical model, width reduced to 44 cm for narrow wall sections

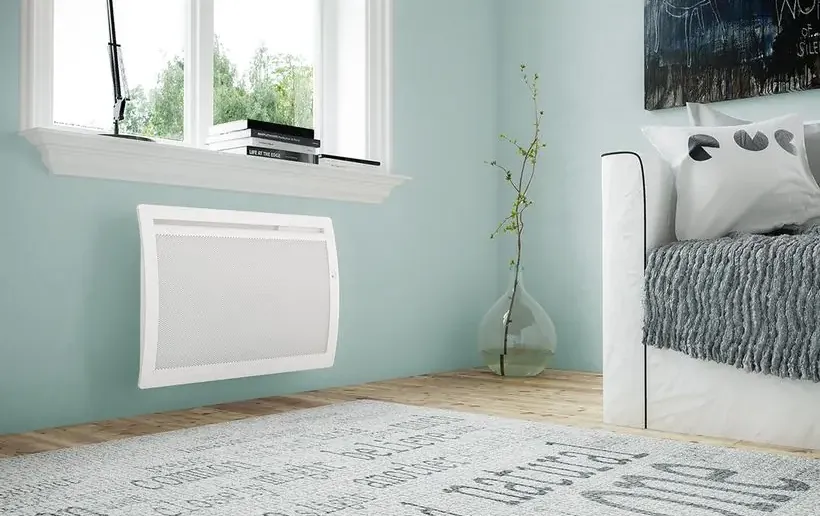

7 powers in Horizontal model, height 44 cm, very compact in width, designed to slide into window sills

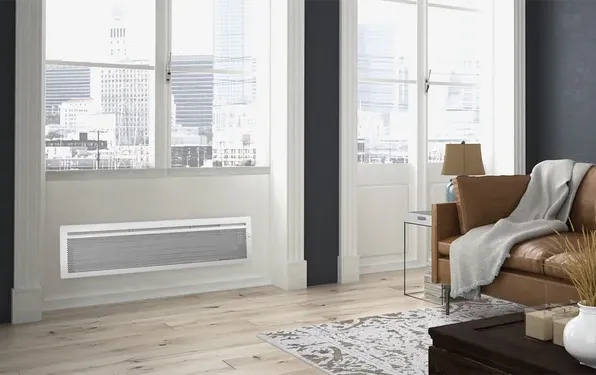

3 powers in Plinths of only 28, 3 cm for the bases.

QUARTEA intelligent is NF performance 3 star eye* certified.

This certification guarantees the highest level of performance in terms of comfort and advanced energy saving functions. It may be required as part of operations covered by energy saving certificates or DPE renovations.

Ergonomics of use

For intelligent adjustment QUARTEA presents a large backlit and timed LCD screen. The screen automatically turns off after use. Very easy to use, a button is provided for each basic function.

Absence detector and auto-adaptive planning mode

For economical operation, the device detects unoccupied rooms and gradually lowers the temperature, which it readjusts according to presence. In auto-adaptive planning mode, the device analyzes the occupants' lifestyle habits to automatically propose the most suitable heating plans, without having to worry about defining manual programming.

Open window detection with sound alert, an anti-waste device.

Intelligent QUARTEA will detect any drop in temperature due to a window opening and shuts down to avoid unnecessary consumption. An audible alert sounds to warn occupants and allow the fault to be corrected, to avoid untimely re-triggering of automated systems, a source of waste.

Special control of landlords, guest houses and hotels

These functions allow you to control access to orders to avoid waste. Access control locked by a pin code and framing of + or
2 degrees around the set point, to limit compulsive adjustments.

Integrated programming for stand-alone use

Its curved front face receives a smooth satin white finish (ral 9003).

Let's talk design

Its openwork and curved front face receives a smooth satin white finish (ral 9003). The discreet air outlet on the front directs the air flow towards the room to limit the risk of dirt.

Origin France Guaranteed

Like more than 90% of Intuis devices, the QUARTEA line is entirely designed and manufactured in our own research centers and factories in France and a majority of its components come from France.

Certifications and regulations

Documentation

Spare parts

(1) Recommended retail prices (excluding installation) may vary depending on each installer, who is free to set their own rates. Additionally, if your home is over 2 years old, you may be eligible for a reduced VAT rate of 10% or 5.5% for products eligible for the Energy Transition Tax Credit (heat pumps and thermodynamic water heaters). Please note that to benefit from tax credits and energy rebates, the products must be supplied and installed by a qualified professional.

Le Quartea Intelligent est un panneau rayonnant intelligent connecté qui incarne la transition des marques Applimo, Airelec et Muller Intuitiv vers intuis. Ce panneau rayonnant offre un chauffage efficace tout en proposant des fonctionnalités de connectivité avancées. Le panneau rayonnant Quartea Intelligent est conçu pour s'intégrer harmonieusement dans votre espace tout en vous permettant de le contrôler à distance. Vous pouvez ajuster les températures et les plages de chauffage selon vos préférences, ce qui vous permet de personnaliser votre expérience de chauffage et de réaliser des économies d'énergie grâce à une utilisation plus intelligente. Si vous recherchez un panneau rayonnant intelligent et connecté de haute qualité pour chauffer votre espace de manière efficace et personnalisée, le Quartea Intelligent d'intuis est un excellent choix, marquant la transition réussie des marques Applimo, Airelec et Muller Intuitiv vers intuis.
