Advantages

La solution thermodynamique individuelle assurant simultanément ECS, chauffage sans unité extérieure

• An ideal solution for multifamily buildings or singlefamily homes, whether new construction or renovation. The Zé7 helps meet RE2020 requirements thanks to its low carbon footprint, while also improving the overall energy performance and the building's energy performance rating (DPE).
• Multiservices: a single solution for heating and domestic hot water. Simultaneous comfort: provides domestic hot water for up to 6 people and heats the living area. Discreet integration: no outdoor unit required, ensuring acoustic comfort and compliance with local planning regulations.
• High performance. 200L stainless steel storage tank. DHW COP +7°C at 3, DHW ETAS at 128% DHW "Roll Bond" heat exchanger made of 100% aluminum, patented technology for improved stratification and reduced limescale buildup.

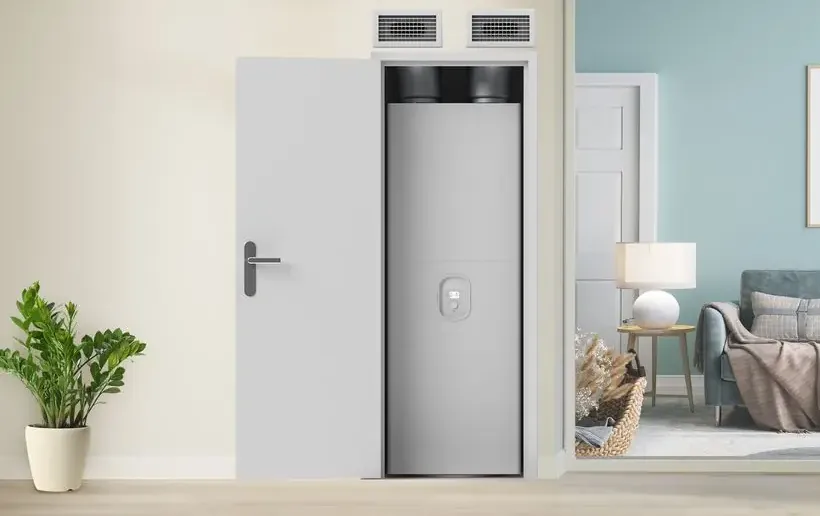

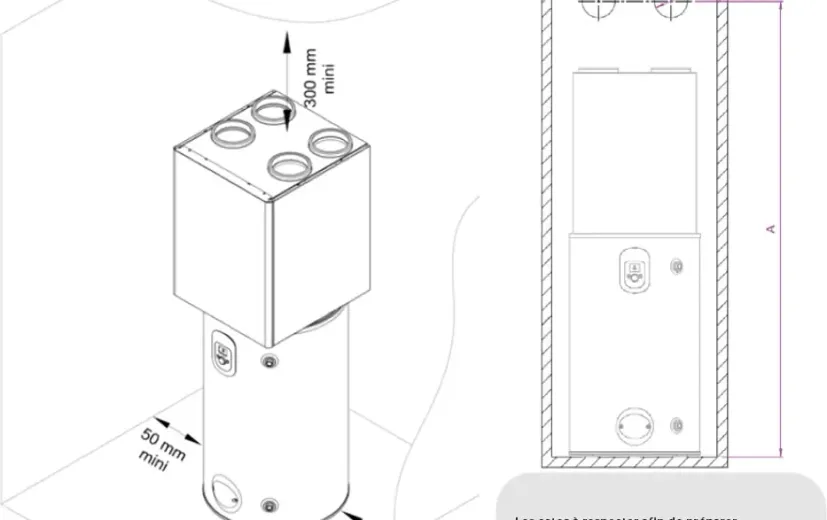

• Discreet and compact: designed to fit directly into an 800 x 800 mm closet, offering an invisible installation. Quiet operation: only 40 dB(A) at 1 m for optimal comfort in the home. Adjustable airflow: the fan motor adjusts the airflow from 50 to 100% of the nominal flow rate while maintaining a maximum pressure of 50 Pa.

Features

• Market type : New market and renovation
• Destination : Collective residential
• Hybrid : N / A
• Maximum heating water temperature : very high > 65°C
• Refrigerant fluid : R290
• Compressor operation : Invert
• Integrated domestic hot water tank : YES
• Type of DHW production : integrated DHW production
• PAC/pilot connection : Monobloc

Description

Design

• 100% French-made monobloc solution: designed, developed, and manufactured in France.

• 2-in-1: heating and domestic hot water production in a single unit.

• Installation without architectural constraints: the Zé7 provides heating via an air-source heat exchanger, without a visible outdoor unit.

• Optimized efficiency: its patented eHD aluminum heat exchanger maximizes heat transfer for increased energy savings.

Savings

Eligible for financial assistance

COP élevé pour un abonnement compteur réduit

EDF Grant

Compatible PV pour plus d’économies.

Destination

• Suitable for individual houses and collective buildings, new, recent, compliant with RE2020/RE2025 or being renovated.

Performance

• Ensures anti-legionella cycles without additional heating for domestic hot water production.

• Insulated tank with 50 mm of polyurethane foam to reduce heat loss.

• Dual compressor, including an inverter compressor, modulating power from 40 to 100% according to needs and external conditions.

• Operates thermodynamically down to -15°C

Comfort and durability

• 200L stainless steel tank, guaranteed for up to 5 years for increased durability.

• Patented Roll-bond system for improved stratification and reduced limescale buildup.

• Variable airflow motor-driven fan (50 to 100% of nominal flow rate) with low blowing pressure (max 50 Pa) for optimal acoustic comfort.

• Included G4 equivalent protective filter to preserve air quality and protect components, with an optional F7 equivalent filter.

Environment

• Environmentally friendly R290 refrigerant, non-fluorinated, factory sealed, with very low GWP (3) and not subject to F-Gas regulations.

Savings

• Eligible for financial assistance

• High COP* for a reduced meter subscription

• Photovoltaic compatible for greater savings.

Technical Specifications

• Type of electrical supplysingle phase
• Height (mm)1880
• Width (mm)640
• Depth662
• Net weight (kg)130
• Packed height (mm)2050
• Packed width (mm)1200
• Packed depth800
• Packed weight (kg)153
• IP ratingIPX1
• Warranty (in months)24
• DHW tank warranty5 years
• Tank materialStainless steel
• Anode protectionother
• V40 TD (L)612.8
• Refrigerant typeR290
• Type of installationOn the ground
• Energy-saving certificateBAR-TH-148
• Energy efficiency classA+
• Seasonal energy efficiency (%) ETAS125
• NF electricityNF Electricity
• COP3.13
• Insulated casing diameterList b 1
• Circuit breaker curve D (A)16

Certifications and regulations

Regulations

Energy class A+ / Hot water tank

Advantages

Domestic hot water

Heating circuit

Eligible for RE2020 thermal regulation

Refrigerant gas R290

Intuis patent

Documentation

General product documentation

Installation and user manual - Zé7 Multi service Water Heat Pump

Notice Façade basse Zé7

Installation and user manual - Zé7 Heat Pump

Notice Façade basse Zé7

Other useful documents

Etiquette Energie

Fiche énergétique Solution thermodynamique Zé7

Are you missing any documentation?

Contact us

Spare parts

Our product is designed to be repairable, with easy access to spare parts available for online ordering. Use our search engine to easily find the product's exploded view based on the serial number.

Access the spare parts shop

Qualities and Environmental Characteristics

• Product RecyclabilityMostly recyclable product
• Precious MetalsContains at least 1 milligram of precious metals
• Rare EarthsContains at least 1 milligram of rare earths
• Hazardous SubstanceContains no hazardous substances
