Where and how does the Aqua Manager connect?

All connections must be made by a qualified person.

Before installing the Aqua Manager, it is imperative to have its installation and user manual.

This modular accessory (2-module size) is installed in the electrical panel and controls the relay (e.g., off-peak relay or day/night relay) of the electric water heater.

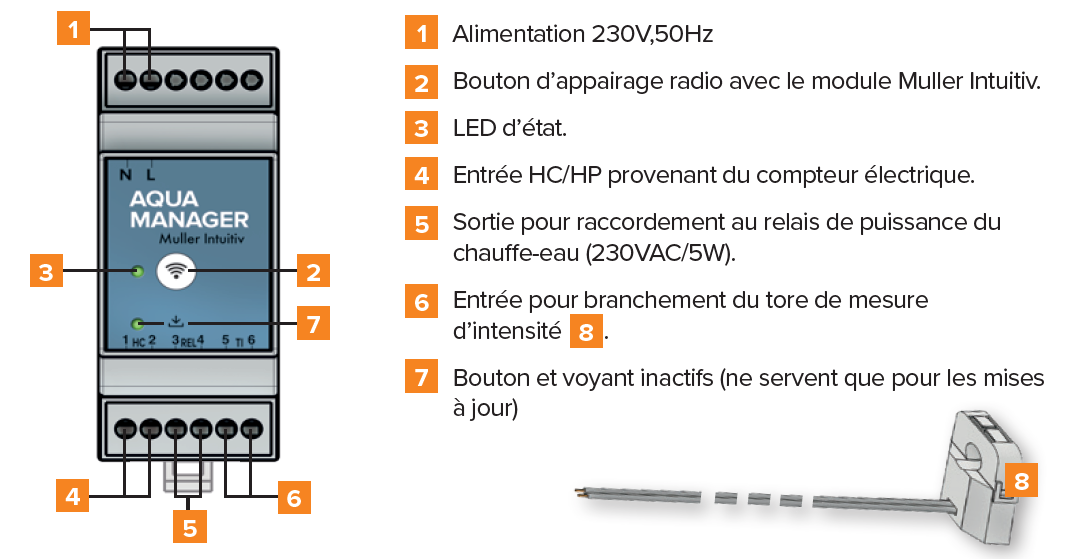

Description:

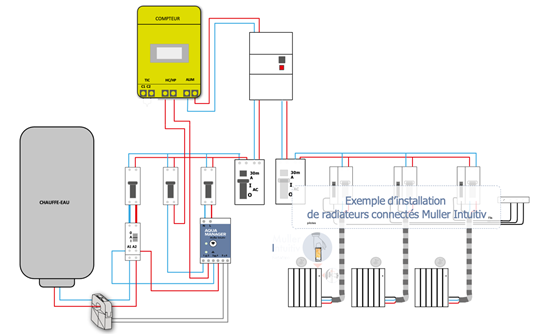

Example of Installation:

Schematic diagram
