Installing an intuis connect module in a radiator

All connections must be made by a qualified person

Before installing the module into the radiator, make sure to have the radiator's installation and user manual and follow the following instructions.



Turn off the main electrical power (at the electrical panel).

Wait, if necessary, for the radiator you are working on to cool down and become safe to handle.

• Remove the radiator.
• Trace its electrical power cable to the flush-mounted wall junction box (plate screwed to the wall). This plate should be behind the radiator.
• Unscrew the cover of the wall junction box, then locate the electrical terminal block (connector, Wago type socket, etc.) where the radiator cable is connected.
• Make sure that the radiator's pilot wire (usually black, check with your radiator manual) is isolated from the rest of the installation, no other cable should be connected to it.

(If the radiator's pilot wire is connected to the electrical installation, it is not compatible with the Muller Intuitiv with Netatmo solution. The module should not be placed in the slot and the cover should not be removed).

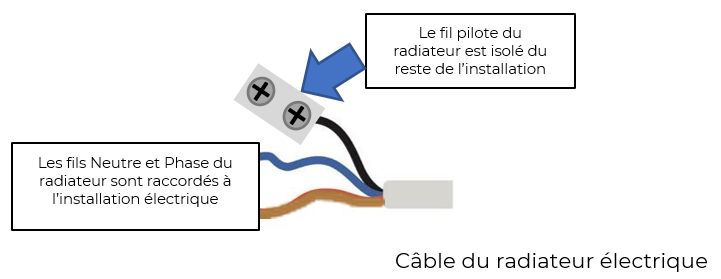

Example:

Once this check is completed,

• Replace the cover of the junction box and the radiator.

Repeat the operation on all radiators equipped with a module, starting again from the step Turn off the main electrical power.

Follow the installation steps described in the Muller Intuitiv with Netatmo application and insert the module only when prompted by the application.

Caution: If your radiator is connected to a Pilot Wire central unit (such as a programmer, energy manager), it is not compatible with installing the module.
