Using the Pilot Wire of my Heating Installation
All connections must be made by a qualified person.
Yes, it is possible to use the pilot wire of your electric heating system. An intuis connect module with Netatmo can control up to 10 radiators maximum on the pilot wire of your system.
In this case, only the communicating smart radiators () must be connected to the pilot wire.
The radiator receiving the intuis connect module with Netatmo must be equipped with a Shunt (accessory sold separately).
Attention: No other equipment should be connected to this pilot wire (Programmer, Load Shedder, etc.). The so-called controllable devices should also not be connected to the pilot wire.

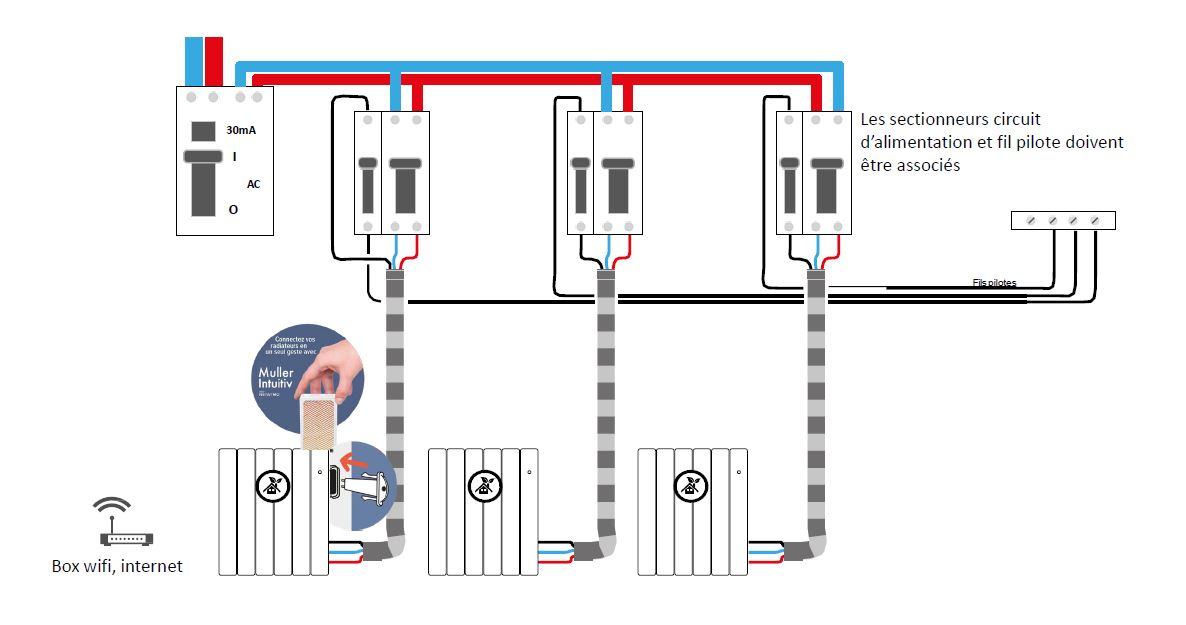

Schematic Diagrams:
Installation Example:
