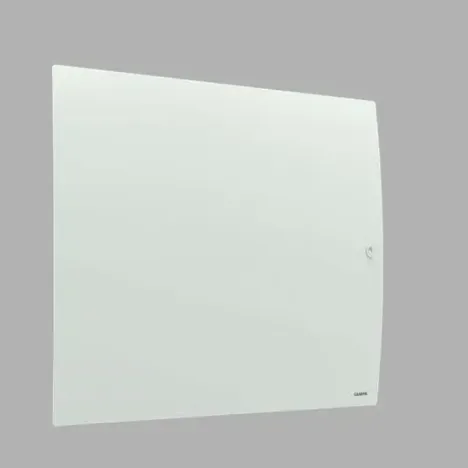

Radiateur Campalys

Orientation

Powers

Color

Radiateur Campalys 1500W Horizontal Blanc




Radiateur Campalys

Name: Campalys
Brand: Intuis
SKU: mc_campalys
Price: 910.8 EUR
Availability: InStock

Ultra smooth design and connected radiator

Ultra smooth design, warmth and gentle inertia

Orientation

Horizontal

Vertical

Low (30-50 cm)

Baseboard (<30 cm)

Powers

1000 W

1500 W

2000 W

Color

Satin white

Reference : M151113

Spare parts and accessories must be installed by a certified professional.

To size your project, log in

Advantages

Intuis is reissuing this essential part of the CAMPA steel range. An ultra smooth design available in 4 formats and a highend satin smooth white finish (ral 9003).
The large, slightly curved format of the front panel produces permanent soft radiation with priority in all seasons, reinforced by an inertial crystal heating body, for a permanent feeling of comfort.
Ultraprecise, very complete digital electronic regulation with presence sensor and selfscheduling.
Easy management of energy savings in local mode or from a smartphone in connected mode, thanks to the intuis connect with Netatmo application.*

*the intuis connect with Netatmo module is optional.

Features

SAVINGS Each degree cooler represents a 7% saving. CAMPALYS offers the most advanced energy-saving features recommended for CEEs (energy saving certificates). Accurate to a 10th of a degree 0.1 AC Backlit LCD display, rotary adjustment knob, and protective cover. Behavioural indicator. Absence detection. Auto-programming mode. Open window detection. Property manager features: simple locking, pin code locking, set temperature range Hospitality options: possibility to lock the controls and temperature range setting. Temperature calibration. Daily and weekly programming: 3 pre-set programmes and 3 free programmes. 6-order pilot wire Digital pilot wire.

Technical Specifications

Heating power (W)

1000

Available colors

Satin white

Height (mm)

573

Width (mm)

682

Depth

123

Net weight (kg)

Packed height (mm)

655

Packed width (mm)

745

Packed depth

200

Packed weight (kg)

13.6

IP rating

IP24

Shock resistance index IK

IK08

Protection class

Warranty (in months)

Energy-saving certificate

BAR-TH-158

Qualities and Environmental Characteristics

Description

Large soft radiation ideal for heating large volumes.

Campalys offers a large, slightly curved exchange surface, which primarily diffuses gentle and permanent radiation, even at low revs. An ideal radiator for heating large volumes without stratifying temperatures.

Savings

Eligible for financial assistance

CAMPALYS corresponds to the criteria of the BAR TH 158 sheet

At the rear: double single-block aluminum heating elements, with inertial crystals for a subtle balance between reactivity and inertia

2 single-block aluminum flat resistors are installed in series at the rear of the device to ensure rapid temperature rises as well as additional power in extreme cold. One of them incorporates natural quartz whose refractory power allows heat to be retained for longer.

The ultra-precise electronic regulation ensures the intelligent heating of these different heating elements according to needs.

The front face and the one-piece aluminum inertial elements at the rear are managed independently, in order to continuously adapt to climatic conditions and required temperature levels. Example in the inter-season when temperatures are mild but cool, the front face has priority and only part of the rear heating elements is used to ensure rapid temperature rises, when switching from economic to comfort mode for example. In the middle of winter, the monobloc aluminum resistances are used, the quatzes accumulate heat which they slowly release to further soften the feeling of heat.

Ergonomics of use.

The easily accessible controls are hidden at the rear and fitted with a cover. It is a backlit LCD screen, which dims after use. A single dial provides easy and intuitive access to basic settings.

Absence detector and auto-adaptive planning mode

For economical operation, the device detects unoccupied rooms and gradually lowers the temperature, which it readjusts according to presence. In auto-adaptive planning mode, the device analyzes the occupants' lifestyle habits to automatically propose the most suitable heating plans, without having to worry about defining manual programming.

Special control of landlords, guest houses and hotels

These functions allow you to control access to orders to avoid waste. Access control locked by a pin code and framing of + or
2 degrees around the set point, to limit compulsive adjustments.

Open window detection with sound alert

CAMPALYS automatically detects a window opening and stops to avoid any waste of energy. An alert signals the fault to the user, in order to avoid any untimely restarting.

Connected mode makes life easier and saves money.

Since each degree less is 7% savings. the Intuis Connect with Netatmo application allows centralized and remote control so you never forget to turn down your heating. The connection module is easily integrated into the back of the device, it is optional.

Let's talk design

This is a range of radiators which have a flat and slightly curved heat exchange surface designed to be installed discreetly in large living rooms, a living room for example. The smooth satin white finish (ral 9003) is dirt-repellent and very pleasant to the touch. CAMPALYS is available in horizontal formats to fit under windows, vertical, low and plinth formats to occupy narrow walls.

CAMPALYS Origin France Guaranteed

Like more than 90% of electric heating ranges, CAMPALYS is entirely designed and manufactured in our own research centers and factories in France, the vast majority of its components come from France.

Certifications and regulations

Technical information for installation

Documentation

Spare parts

The Campalys is an ultra-sleek, designer radiator and smart radiator that embodies the transition from Applimo, Airelec, and Muller Intuitiv to intuis. This radiator offers aesthetically pleasing, modern heating while also offering advanced connectivity features. Campalys radiators are designed to blend seamlessly into your space thanks to their ultra-sleek, elegant design. Additionally, they allow you to control them remotely, adjusting temperatures and heating ranges to your preferences, allowing you to personalize your heating experience and save energy. If you're looking for high-quality designer and smart radiators to heat your space efficiently and aesthetically, the Campalys radiators from intuis are an excellent choice, marking the successful transition from Applimo, Airelec, and Muller Intuitiv to intuis.
