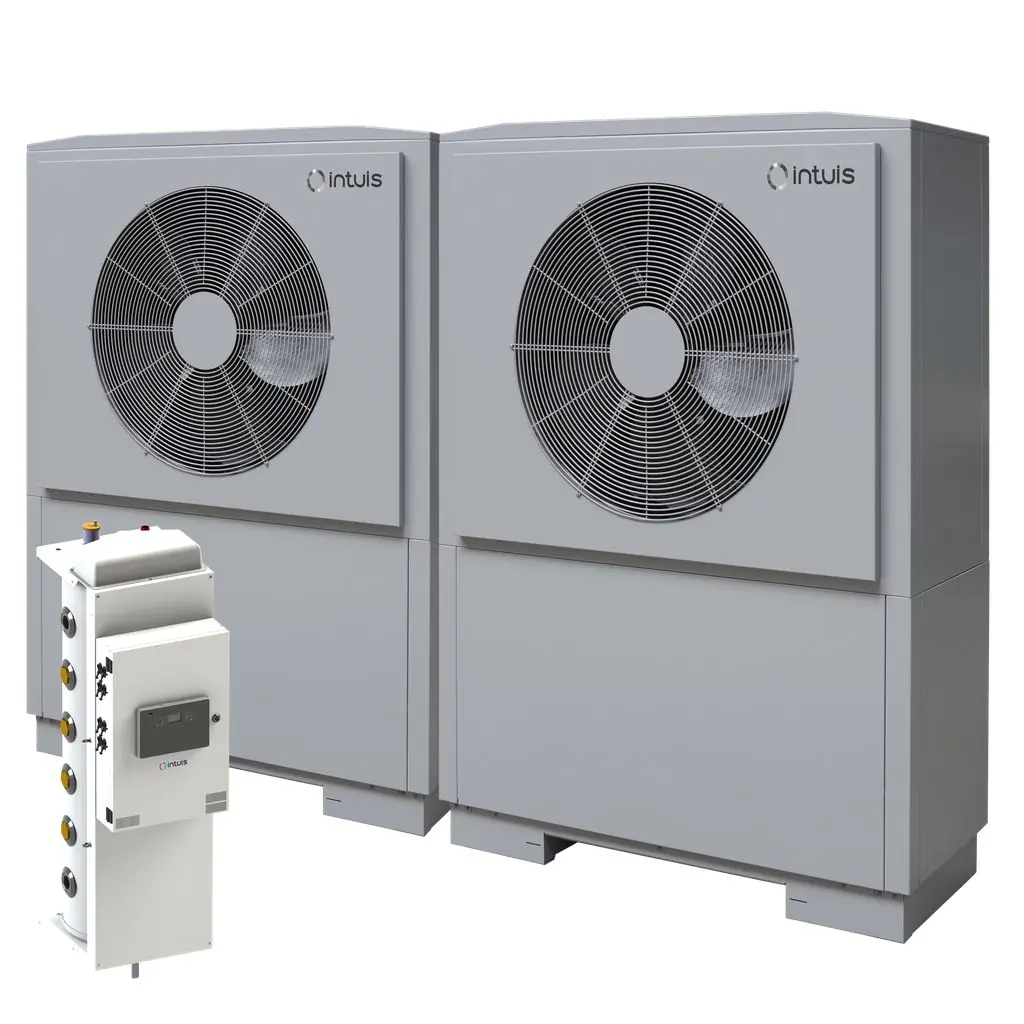

Heat Pump HRC70 Z1 Cascade

Powers

Pompe à Chaleur HRC 32 kW cascade Pilote Z1

Pompe à Chaleur HRC70 32 kW écorché

Heat Pump HRC70 Z1 Cascade

High-temperature 70 °C single-unit air/water heat pump with multi-functional, multi-purpose control unit for heating and DHW.

2nd heating circuit optional
TOR

Powers

40 kW three-phase

50 kW three-phase

64 kW three-phase

75 kW three-phase

96 kW three-phase

Reference : 151453

Spare parts and accessories must be installed by a certified professional.

Advantages

Multi-functional, multi-hydraulic connections, control unit with numerous hydraulic connection options to manage several circuits.

Designed, developed, and manufactured in France: French savoirfaire and local factories.
Fits perfectly with an existing setup and can be connected to an existing boiler as a backup.
Singleunit design for easy installation, with a simple hydraulic link between the heat pump and control unit, so there's no need to handle any refrigerant.
Efficient, with a standard Coefficient of Performance of up to 4.8*, and incredibly quiet thanks to the intricate design. Compressor with a 5year guarantee*

*Compressor guaranteed for 5 years subject to compliance with the warranty conditions set out in the T&Cs of the current price list.

Features

Market type : New market and renovation
Destination : Collective residential
Type of housing : Area between 80 and 160m2
Application : 2nd heating circuit optional
Hybrid : N / A
Maximum heating water temperature : very high > 65°C
Refrigerant fluid : R290
Compressor operation : TOR
Type of DHW production : Optional remote DHW
PAC/pilot connection : Monobloc

Technical Specifications

Maximum power (-7°C/35°C) (kW)

18.5

Type of electrical supply

three-phase

Application

single serve

Energy class at 35°C

A++

Energy class at 55°C

A+

Generator dimensions (wxhxd) (mm)

1035 X 1713 X 561

Pilot dimensions: (wxhxd) (mm)

410 X 1512 X 566

Seasonal efficiency 35°C / 55°C (ns)

150 / 116

Nominal heat output at -7°C / 65°C (kW)

15.58

Nominal heat output at +7°C / 35°C (EN14511)

10.9

COP at +7°C / 35°C nominal (EN14511)

4.6

Nominal sound pressure level (at 5 m directivity 4) (dB(A))

38.8

Outside air range (°C)

-20 / 40

Protection circuit breaker (A)

Max. electrical power (kVA)

11.5

Minimum power cable cross-section (mm²)

Nominal water flow (L/h)

3000

Refrigerant quantity (kg)

0.9

Hydraulic connection (mm)

26/34 male

Minimum power cable cross-section (mm2)

2.5

Power protection circuit breaker (A)

10A

Power supply (V)

230

Multi-function bottle (L)

Hydraulic connections (mm)

40/49 male

Pilot empty weight (kG)

Boiler connection

Yes

Circuit decoupling

Yes

IP rating

IPX4

Energy-saving certificate

BAR-TH-166

Qualities and Environmental Characteristics

Quelles économies avec une pompe à chaleur ?

How Much Can You Save with a Heat Pump?

Read the article

Durée de vie d'une pompe à chaleur : quand la remplacer ?

Lifetime of a Heat Pump: When to Replace It?

Read the article

Description

Design

Designed, developed, and manufactured in France: French savoir-faire and local factories.
Fits perfectly with an existing setup and can be connected to an existing boiler as a back-up.
Numerous hydraulic connection options to manage several circuits.
Single-unit design for easy installation, with a simple hydraulic link between the heat pump and control unit, so there's no need to handle any refrigerant.
Covers all your heating and DHW needs.

Savings

Eligible for financial assistance

Good energy-performance rating means lower bills.

EDF Grant What assistance?

Operates with or without a back-up boiler (gas, electricity, etc.)

Use

For large houses, new houses, RE2020 new builds, renovation projects, as well as service industry and industrial uses.
Perfectly suited to new-build projects with low-temperature heating (underfloor or ceiling heating, low-temperature radiators), or high-temperature radiators for renovations.
Can be used to replace an old boiler and does not require the replacement of existing high-temperature radiators.

Performance

High Temperatures up to 70 °C on even the coldest days thanks to R290 refrigerant, providing heating in all setups and anti-legionella cycles without back-up heating for DHW production.
High Compression Ratio for 3 power levels (2 power levels for the 20kW version).
Modular power: innovative combination of 2 high-performance compressors to always match supply to demand.
Power range from 40kW three-phase and up to 96kW three-phase.
Standard Coefficient of Performance up to 4.6(2).
Exceptional Coefficient of Performance providing up to 80% in savings on heating.
Thermodynamic running down to -20 °C outside air temperature.

Comfort & durability

Quiet running thanks to a carefully engineered design.
Hydraulic separation of the heat pump and heating circuits.
Scalable as required to cover several circuits.
Smart remote management (optional).
Stepped 6kW electric back-up (2, 4, and 6kW), single or three-phase (optional).
Robust construction with anti-corrosion and UV-protected steel panel structure, fully stainless steel heat exchanger, anti-rust-treated evaporator, high-efficiency scroll compressor, and reliable electrical and electronic components.

Environment

R290 refrigerant sealed in the outdoor unit; non-fluorinated;
drastically reduced greenhouse effect impact; F-GAS compliant;
patented intuis technology.

Environment

The R290 used in our heat pumps is a non-fluorinated gas compliant with F-GAS with low environmental impact (Global Warming Potential = 3).

Certifications and regulations

Technical information for installation

Documentation

Spare parts

Documents for engineering firms

Download our CCTP (Cahier des Clauses Techniques Particulières), DWG files, and data entry sheets...

Access

Frequently purchased together

ONIX

8-socket floor-installation primary buffer tank

Ballon VS - TP MG

Ballons préparateurs ECS de 300L à 3000L avec échangeur serpentin toute hauteur, anode Magnésium et accès "trou de poing"

The HRC70 Z1 Cascade is a monobloc air-to-water heat pump. This product is part of the intuis range, which is the evolution of the Auer brand. Previously, it was marketed under the Auer brand, but has been integrated into the intuis product range. The HRC70 Z1 Cascade draws heat from the outside air to heat your home efficiently and economically. With its advanced technology, the HRC70 Z1 Cascade ensures optimal thermal comfort in your home, whether for space heating or domestic hot water production. If you are looking for a high-quality and environmentally friendly heating solution, the HRC70 Z1 Cascade from intuis, formerly known as Auer, is an excellent choice for your heating needs.
